Description

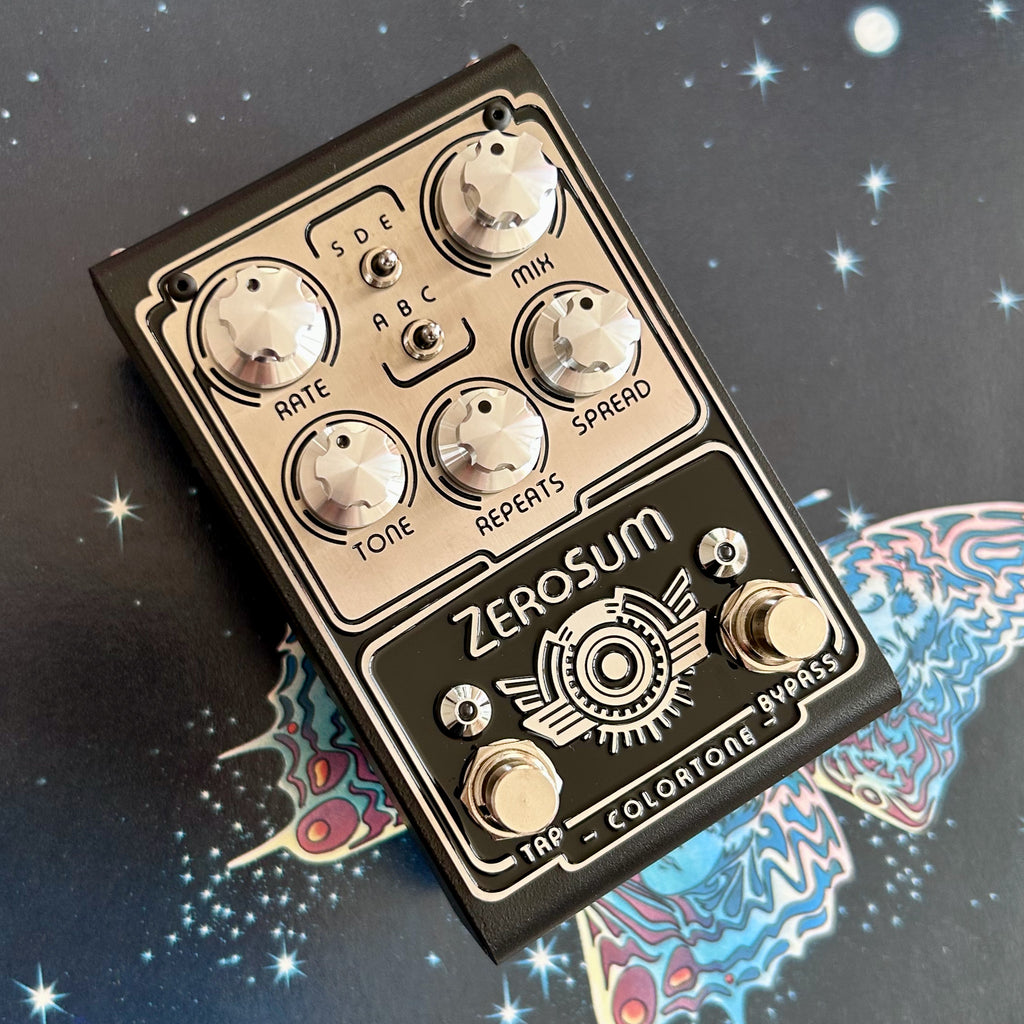

ping pong delay pedal ZeroSum Multi head rhythmic stereo delay – Joe's PedalsColortones versatile multi head stereo delay pedal features three Delay Modes: Single Head Dual Head Echo Pong (Ping Pong) Additional delay tone shaping controls include: Stereo Spread Tape Degredation Delay Drive Saturation Delay Tone Tilt EQ Feedback Q Output Boost, Tap Tempo, Tap Tempo Multiplier, Three Presets, Expression Control for Speed Multiplier and MIDI Control DELAY MODES Each of the Delay modes, Single Head, Dual Head and Echo Pong contain
Colortones versatile multi head stereo delay pedal features three Delay Modes:
-
Single Head
-
Dual Head
-
Echo Pong (Ping Pong)
Additional delay tone shaping controls include:
-
Stereo Spread
-
Tape Degredation
-
Delay Drive/Saturation
-
Delay Tone Tilt EQ
-
Feedback Q
-
Output Boost, Tap Tempo, Tap Tempo Multiplier, Three Presets, Expression Control for Speed Multiplier and MIDI Control
DELAY MODES
Each of the Delay modes, Single Head, Dual Head and Echo Pong contain three switchable rhythmic variations
DELAY SHAPING CONTROLS
TONE
-
TILT EQ Style Delay tone with unity at 12 O’Clock. To the left enables adjustable LowPass filtering, to the right - HighPass filtering
SPREAD
-
SPREAD widens the stereo field of the Delay. Hard left is Mono - Hard right is full field stereo
FEEDBACK Q
-
Adjusts the Q Factor of the Delay EQ. Higher amounts of Q can make the feedback runaway quite uncontrolably:)
TAPE AGE
-
TAPE AGE adds a slight Tape Warble which has a nice chorusy effect on the delayed signal
DRIVE
-
Adds some compression and signal degradation to the repeated delay lines
EXPRESSION PORT and IO MATRIX
The EXPRESSION PEDAL acts as a instant delay speed multiplier. based on the currently set RATE. The travel of the expression treadle is divided into three fixed multipliers, 1:1, Double speed x2, Triple Speed x3. Heel Down is 1:1 (no change).
If using a MIDI controller with an expression pedal any parameter is avaliable for control
Setting the AUDIO IO MATRIX is selected with the small recessed switch on the back of the unit. NOTE: make sure if selecting mono for Input/Output to use TS cables and plugs
TECHNICAL
Input Impedance 2Meg Ohm
Output Impedance 100 Ohm
Current Draw 145mA
MIDI Connection 3.5mm TRS (Type A)
MIDI channel Ch 13
Expression Port Passive 10k TRS T=Signal R=3.3v
Dimensions 127 x 79 x 63mm
9V DC (Center negative) (No Battery)
NOTE External Power supply no included. (Recommended use of an isolated clean Power Supply)
FIRMWARE UPDATES
Can be found HERE
