Description

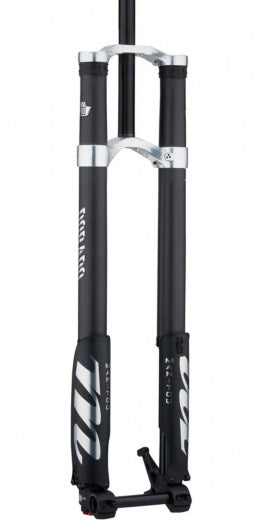

manitou mountainbike MANITOU Dorado Pro Carbon 29" AirTechnical specifications: intended use : Downhill, Enduro Wheel size: 29 " 27. 5" material: Aluminium, Carbon usage bikesport: MTB, Downhill, Freeride brake type: Disc Brake wheel size: 27,5" 650B (584mm), 29" (622mm) travel fork: 180mm, 190mm, 200 203mm axle standard: 20x110mm Boost (FW) Rear Shock Spring Version: Air Shock fork shock adjustability: Pressure positive air chamber, Air volume, Low speed compression, High speed compression, Low speed
Technical specifications:
intended use : Downhill, Enduro
Wheel size: 29 "| 27.5"
material: Aluminium, Carbon
usage bikesport: MTB, Downhill, Freeride
brake type: Disc Brake
wheel size: 27,5" / 650B (584mm), 29" (622mm)
travel fork: 180mm, 190mm, 200/203mm
axle standard: 20x110mm Boost (FW)
Rear Shock/Spring Version: Air Shock
fork/shock adjustability: Pressure positive air chamber, Air volume, Low speed compression, High speed compression, Low speed rebound
fork length (axle to crown): 602mm
stanchion diameter: 37mm
suspension: Dorado Air mit IRT
damping: TPC+ mit HBO
fork offset: 57mm
max tire width: 67mm
Steerer tube Ø: 1 1/8" straight ahead
disc brake mount: PM (8") 203mm
max. disc diameter: 223mm
Model year: 2022
Color: Black
fork construction: Up-Side-Down
weight: 2970g
1x MANITOU suspension fork 29 "| 27.5" Dorado Pro 203 mm | 20x110 mm BOOST 57 mm offset | black
1x thru axle
MANITOU suspension fork 29 "| 27.5" Dorado Pro Carbon 203 mm | 20x110 mm BOOST 57 mm offset | black
Manitou Dorado Pro 29 Inch Carbon Fork - 180-203mm - 57mm Offset Drop Crown - Straight - 20x110mm Boost
Legends Never Die – The completely redesigned Dorado Pro is ready to turn the downhill world upside down! An upside-down fork with carbon casting, 37mm stanchions and revised internals, the Dorado Pro is the absolute pinnacle of suspension technology. The stiffer chassis is paired with a brand new, closed-loop TPC+ cartridge and an upgraded air spring with IRT adjuster. These technologies - combined into one ultimate platform - offer more than enough adjustability to excite any suspension tuner, no matter how savvy. At the same time, the Dorado Pro is so easy to handle that truly any rider can adjust their fork with ease.
An enormous increase in rigidity compared to the 36 mm chassis of the previous version
Specs of the Manitou Dorado Pro 29 inch Carbon suspension fork
Travel: 180, 190, 203 mm (internally adjustable)
Spring: Dorado Air with Infinite Rate Tune (IRT)
Compression Damping: Sealed Cartridge TPC+ with Hydraulic Bottom Out (HBO)
Rebound Damping: Sealed Cartridge TPC
Adjustments: Air, IRT, Rebound, HS, and LS Compression
Options: Fender
Special Features: An adjustable bridge with different offsets allows 27.5″ and 29″ wheels to ride with one fork.
Scope of delivery: suspension fork incl. thru axle
FACT SHEET OF MANITOU DORADO PRO 29 INCH CARBON FORK - 180-203MM - 57MM OFFSET DROP CROWN - STRAIGHT - 20X110MM BOOST
Product Name: Manitou Dorado Pro 29 Inch Carbon Fork - 180-203mm - 57mm Offset Drop Crown - Straight - 20x110mm Boost
Manufacturer: Manitou
material: Aluminium, Carbon
usage bikesport: MTB, Downhill, Freeride
brake type: Disc Brake
wheel size: 27,5" / 650B (584mm), 29" (622mm)
travel fork: 180mm, 190mm, 200/203mm
axle standard: 20x110mm Boost (FW)
Rear Shock/Spring Version: Air Shock
fork/shock adjustability: Pressure positive air chamber, Air volume, Low speed compression, High speed compression, Low speed rebound
fork length (axle to crown): 602mm
stanchion diameter: 37mm
suspension: Dorado Air mit IRT
damping: TPC+ mit HBO
fork offset: 57mm
max tire width: 67mm
Steerer tube Ø: 1 1/8" straight ahead
disc brake mount: PM (8") 203mm
max. disc diameter: 223mm
Model year: 2022
Color: Black
fork construction: Up-Side-Down
weight: 2970g
Link to official manufacturer fork website: https://hayesbicycle.com/collections/forks/products/my22-dorado-pro
