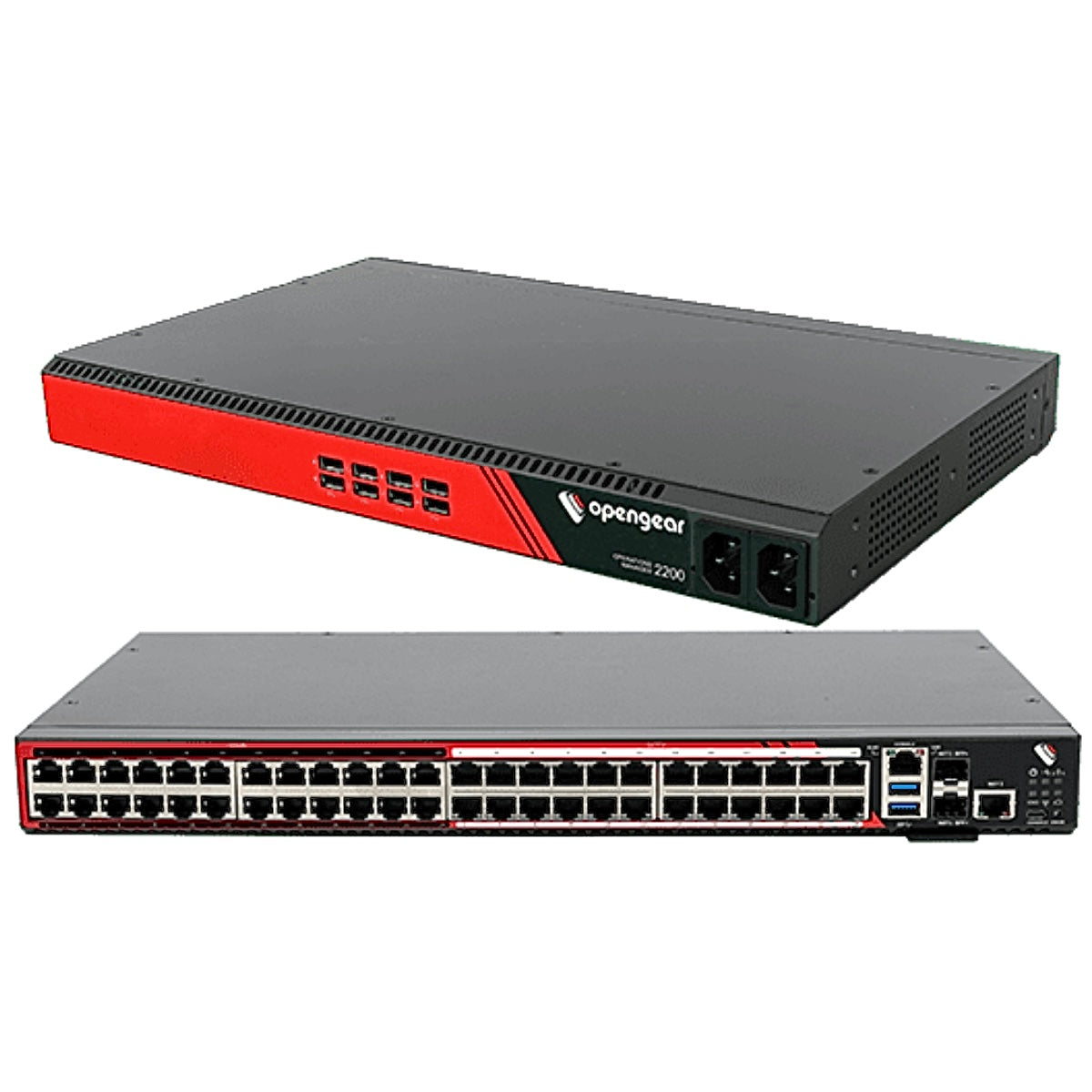

us open gear OM2224-24E-10G-USConsole Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord OM2200 OPERATIONS MANAGER Opengear OM appliances are NetOps Console Servers Network Management appliances that combine the capabilities of a Smart OOB Console Server with the flexibility of NetOps Automation. The OM2200 NetOps Console Server, managed through our Lighthouse software, is configured for data centers and

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord

OM2200 OPERATIONS MANAGER

Opengear OM appliances are NetOps Console Servers – Network Management appliances that combine the capabilities of a Smart OOB™ Console Server with the flexibility of NetOps Automation.

The OM2200 NetOps Console Server, managed through our Lighthouse software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.

• 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
• x86 platform supporting Docker and Python, to automate NetOps processes
• Smart OOB includes automated port discovery and VLAN support on the OM appliances

FEATURES

TECH SPECS

All Models:

• All serial ports are RJ45 RS-232 Console Port (50 to 230,400 bps, software selectable Cisco-straight or Cisco-rolled pinout)

• 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial

• 8 x USB 2.0 ports for device console management

• 2 x USB 3.0 Host Ports for storage

• 2 x 10/100/1000 Ethernet/SFP Fiber port

• OM2216 ‚Äì 16 x RJ45 RS-232 Serial Ports

• OM2232 ‚Äì 32 x RJ45 RS-232 Serial Ports

• OM2248 ‚Äì 48 x RJ45 RS-232 Serial Ports


Power:

• Dual socket universal 100-240V AC

• Power consumption for serial models than 30W

• Power consumption for mixed models less than 45W


Dimensions and Weight:

• 17.25 x 10.25 x 1.75 in ‚Äì 7.7 lbs

• 44 x 26 x 4.5 cm ‚Äì 3.5 kg


Environmental:

• Ambient Operating Temperature: 5¬∞C to 50¬∞C, 41¬∞F to 122¬∞F

• Storage Temperature: -30¬∞C to +60¬∞C, -22¬∞F to +140¬∞F

• Humidity: 5% to 90%


Emissions:

• EN55032: 2015 Class A


Immunity:

• EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013


Memory & CPU:

• AMD GX-412TC¬† 1.4 GHz 4-core 64-bit x86
• 8 GB DDR3 RAM

MTBF:

• 100,000 hours


Security and Authentication:

• Trusted Platform Module 2.0

• AAA ‚Äì TACACS+

• SSH

• Embedded Firewall

• OpenVPN ‚Äì Lighthouse Connection


Cellular Specifications (OM22xx-L models)

SIM Slot: Dual Push Click 2FF SIM slots

Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-A Pro (LTE-LAA), HSPA+

Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19

Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
