Description

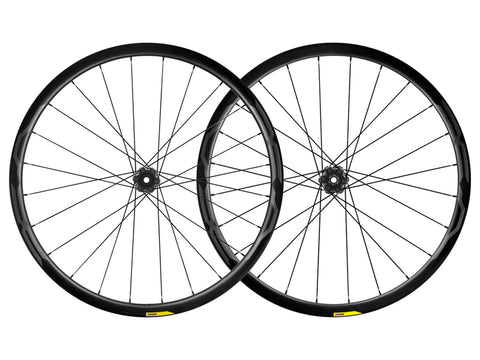

mavic xa pro mtb helm Mavic XA Pro Carbon 29" – OCRFitStoreCrush climbs and rail the roughest descents. This carbon wheel reduces weight while improving ride quality Laterally stiff with just enough vertical compliance for added control Full carbon rim provides balanced and fine tuned lateral stiffness for optimal control Enhanced fiber layup produces fine tuned vertical compliance for durability The two cross spoke pattern on the front and rear provides comfort and control Dynamic and lightweight feel for
Crush climbs and rail the roughest descents. This carbon wheel reduces weight while improving ride quality
Laterally stiff with just enough vertical compliance for added control
Full carbon rim provides balanced and fine-tuned lateral stiffness for optimal control Enhanced fiber layup produces fine-tuned vertical compliance for durability The two-cross spoke pattern on the front and rear provides comfort and control
Dynamic and lightweight feel for easier climbing and agility on the trail
Full-carbon rim delivers responsive feel and excellent trail feedback Lightest trail wheel system in its class (1490g in 27.5)
Better traction and control, plus a reduced risk of punctures
26mm internal width (32mm outside) rims are optimized for 2.4” or larger tires Hookless rim profile reduces tire burbs and creates stronger rims
Rims
Material: 100% Unidirectional carbon fiber
Drilling: traditional
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Internal width: 26 mm
ETRTO size 27.5": 584x26TSS
ETRTO size 29": 622x26TSS
Hookless profile
Use with Mavic Tubeless Tape
Spokes
Material: steel
Shape: straight pull, flat, double butted
Count: 24 front and rear
Lacing: front and rear crossed 2
Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Adjustable sealed cartridge bearings (QRM+)
Freewheel: ITS-4 alloy
Versions
Color: Black only
Disc standard : 6 Bolts only
Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)
Compatibility
Freewheel: Shimano/Sram or XD
Front axle: convertible from 15mm thru axle to Quick Release with included adapters
Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters
Delivered with
UST valve and accessories
Tubeless rim tape
Multifonction adjustment wrench
User guide
Label
SSC
Intended use
ASTM CATEGORY 3 : CROSS COUNTRY AND TRAIL RIDING
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
Recommended tyre sizes: 46mm to 64mm (1.8" to 2.5")
Filters
Category : Trail
diameter: 29"
diameter: 650b/27.5"
rim width (internal): 25/26mm
tubeless: yes
weight: 1301g to 1500g
Efficiency & rigidity
ITS-4
UST Tubeless Ready
QRM+
Save energy on the climbs and rail rugged descents with higher speeds and total control. We engineered the XA Pro Carbon to be significantly lighter and laterally stiffer than any aluminum wheel, but also retained the impact resistance and vertical compliance that gives Mavic Wheel-Tire Systems the ride quality they’re known for. The XA Pro Carbon is the lightest wheel system in its category (1490g for 27.5” and 1535g for 29”). So you know it helps you climb and accelerate faster, but where it really shines is in the way it handles rough and challenging terrain. We engineered a wide 26mm hookless rim profile that’s fully UST Tubeless compliant for improved traction, puncture resistance and ease of use. These asymmetric rims are fine-tuned to optimize spoke tension and they use 24 double-butted steel spokes to find the sweet spot between lateral stiffness and vertical compliance. Hubs are 6-Bolt only and compatible with all current axle standards including Standard and Boost.
Weight Front 27.5" 715
Weight Front 29" 735
Weight Pair 27.5" 1550
Weight Pair 29" 1590
Weight Rear 27.5" 835
Weight Rear 29" 855
