fitnessbike merida speeder Merida Hybrid Bike

fitnessbike merida speeder Merida Hybrid BikeSPEEDER 100 The entry level into our SPEEDER range, but still features a lightweight aluminum frame, full carbon forks, and quality Shimano components. A fun packed and efficient commuter and fitness mile muncher. Our entry model into our SPEEDER range, the SPEEDER 100 brings the same high quality aluminum frame and full carbon fork to the table as its more high end family members, but combines it with high value components. Powerful disc brakes

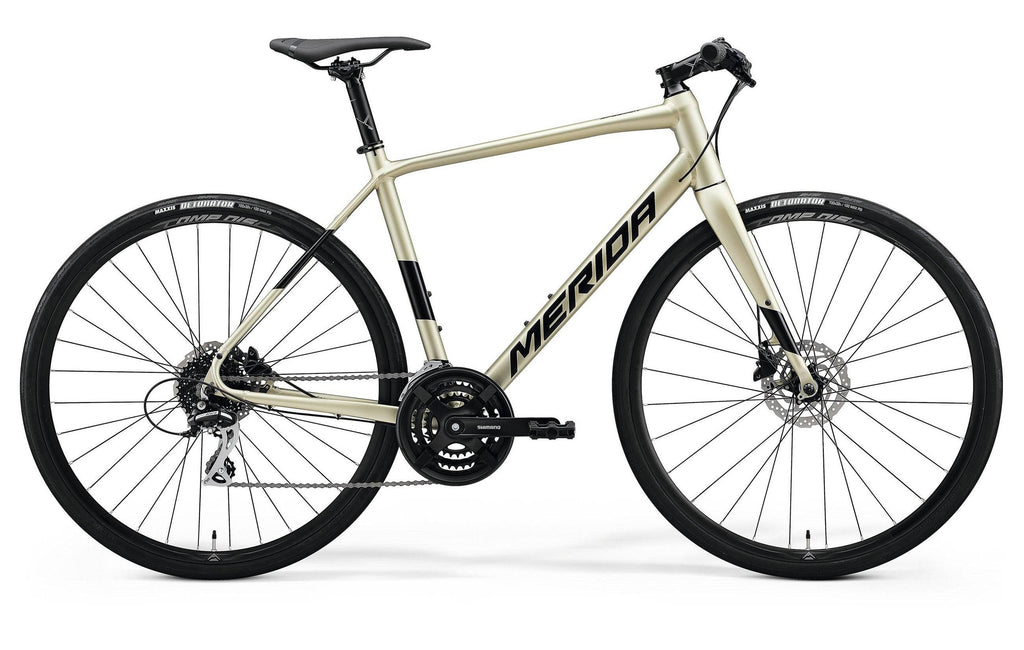

SPEEDER 100
The entry-level into our SPEEDER range, but still features a lightweight aluminum frame, full carbon forks, and quality Shimano components. A fun-packed and efficient commuter and fitness mile muncher.

Our entry model into our SPEEDER range, the SPEEDER 100 brings the same high-quality aluminum frame and full carbon fork to the table as its more high-end family members, but combines it with high-value components. Powerful disc brakes enable perfect speed control, while the broad gear range of the triple chainset makes climbing a breeze and keeps top speeds high. Multiple fixing points allow bottle cages, fenders, and a rear rack to be fitted

Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort-inspired geometry paired with control-enhancing flat handlebars and powerful disc brakes makes the SPEEDER ideal for fast commuting or fitness rides. Wider tires and more tire clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting, and everyday riding.

• Lightweight aluminum frame with a full carbon fork
• Shimano Acera triple chain set drivetrain
• Sporty yet comfortable geometry and seating position
• Flat handlebar setup
• Powerful Shimano hydraulic disc brakes
• Multiple fixing points for fenders and a rear rack

Additional Shipping Charges Apply:
Large volume / volumetric weight Shipment - This product originates from our distribution center in Bangalore, India, and will be transported using the most reliable and premium courier partners to ensure reliable delivery of the product to you. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided and applied by couriers, after the order is placed and when the product is ready for dispatch - by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.

Specifications

• Frame: SPEEDER LITE II
• Material: Aluminum
• 700x35C max. wheel size
• 100x9/135x9mm axle standard
• BSA bottom bracket standard
• Frame Size: XS, S, S/M, M/L, L, XL
• Color: Silk Champagne (Black)
• Fork: MERIDA SPEEDER CF2
• Tapered
• Material: Carbon
• 700x35C max. wheel size
• Brakes: Shimano ST-EF505, BR-MT200 brake caliper
• Rotors: Shimano RT10, 160 mm
• Brake Lever: Shimano EF505
• Headset: Merida M2341
• Handlebar: Merida Comp TK
• Material: Aluminum
• 600mm width
• Flat
• Handlebar Stem: Merida Comp CC
• Material: Aluminum
• 31.8mm diameter
• 6° stem angle
• 80 mm-XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
• Grip: Merida Comp EC
• Derailleur (F): Shimano TY710
• Derailleur (R): Shimano Acera-X
• Shifters: Shimano ST-EF505
• Seat Post: Merida Comp CC
• Material: Aluminum
• 30.9mm diameter
• 12mm setback
• Seat Clamp: Merida Expert
• Saddle: Merida Comp SL, V-mount
• Pedal: VP VPE-891
• Chain: Sunrace CN-M84
• Crank: Shimano TY301
• 48-38-28 teeth
• 170 mm-all sizes
• Freewheel: Sunrace CSM558
• 11-32 teeth
• 8 speed
• Bottom Bracket: FSA TH-7420ST Cartridge Bearing
• Hubs: Joytech D471SBT-SC-CL / Shimano FH-TX505
• 100x9mm width front hub
• 28 spoke holes
• Centerlock
• 135x9mm width rear hub
• 32 spoke holes
• Centerlock
• Rim: Merida Comp SL
• 17mm inner width
• 22mm height
• Material: Aluminum
• Tyre Front: Maxxis Detonator
• 700x32C
• wire
• Tyre Rear: Maxxis Detonator
• 700x32C
• wire
• Spokes: Black stainless
• Max. Weight: 120 kg.

Technologies

Pro-Lite 66 Triple-Butted Aluminum
Our proven high-end aluminum (6066) is extremely light and durable. Using triple-butted wall thicknesses and hydroforming technology, we can tune the aluminum tubes to give the best possible stiffness to weight ratio.

HFS - Hydro Forming System
Tubes are inserted into negative molds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.

X-Taper Headtube
Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precision and deliver confidence-inspiring steering.

Internal Cable Routing
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

Smooth Welding
Sometimes called ‘double pass welding, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.

Down Tube Exit
Ensures that internally routed cables and wires can’t move freely and remain easily accessible for servicing.

TFS - Techno Forming System
Technoforming is a mechanical forming process, shaping the tubes by using negative molds, at times combined with an internal metal core.

F-Mount
‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model-specific mud guards), making fitting fast and simple.

C-Mount
‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require a model-specific rear rack), making fitting fast, simple and reliable.

Geometry & Size Guide
